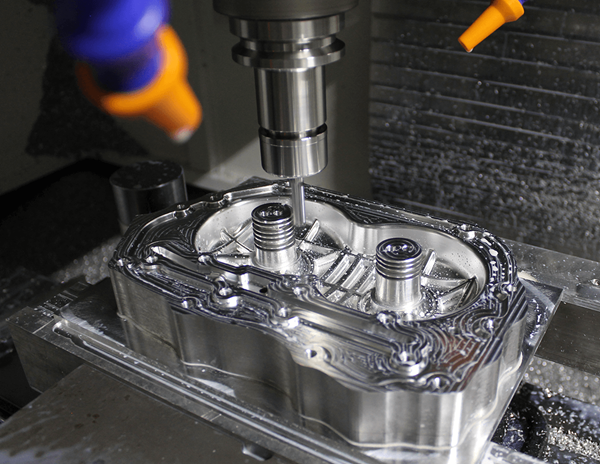

If you've ever seen a CNC machine in action, you know it's all about movement. The tool slides, drills, curves, rotates—often in ways that feel too precise to be real. Behind that precision is a hidden structure: the axes. These invisible paths dictate everything from how parts are cut to how much setup time is required. To understand modern manufacturing, you have to understand CNC machine axes.
Axes aren't just engineering terms—they're the basic grammar of how CNC machines "speak" motion. At the core, you'll find three linear ones: X, Y, and Z. Each represents a direction. Together, they define where the tool or workpiece can move in space.
But that's just the beginning. Some machines can also rotate around these axes, adding entirely new degrees of freedom. This is where things move from simple to sophisticated. Suddenly, angled cuts, rounded surfaces, and complex contours become possible.
And it's not always the tool that moves. In some machines, the workpiece spins or tilts while the tool stays fixed. In others, the opposite happens. What matters is control—precise, repeatable, programmable control. That's what CNC is all about.
These axis systems are built into everything: the motors, the software, the g-code instructions. When you add or subtract an axis, you're fundamentally changing what the machine can do.
Walk into most job shops, and the 3-axis machine is what you'll see. It's the industry's entry point and its backbone. Simple. Proven. Capable.
With just X, Y, and Z, you can do quite a bit. Cutting flat plates, drilling holes, milling channels—it all works. And for many parts, that's all you need. You design it, program it, clamp it, run it.
What's more, these machines are fast to set up and easy to run. CAM software handles them well. Operators don't need deep training. They're the go-to choice for prototypes, brackets, flanges—anything where geometry stays in one plane or just moves layer by layer.
But there's a cost to simplicity. Need to cut the side of a block? You'll have to remove it, rotate it, re-fixture it, and hope the alignment stays true. Do this a few times, and your part tolerances begin to drift. Not ideal.
That's where higher-axis machines come in.
Add just one rotary axis, and everything changes. With a 4-axis machine, typically featuring an A-axis, the part can rotate while the tool cuts. That single ability can eliminate whole steps.
Now, imagine you're machining a round tube and need to drill holes all the way around. On a 3-axis setup, you'd reclamp the tube again and again. Tedious and risky. A 4-axis machine? Just rotate and cut.
It also helps when parts have features on multiple faces—especially when those features need precise alignment relative to each other. No more guesswork between setups.
There's an efficiency bonus, too. By rotating the workpiece, the machine accesses hard-to-reach areas without interrupting the cycle. You get better finish, fewer clamps, and faster turnaround.
Still, 4-axis isn't plug-and-play. Programming gets a bit more involved. Toolpaths have to account for rotational position. And fixturing must allow for clearance during spin.
But for symmetrical parts, curved components, or anything requiring side access, it's often the sweet spot between productivity and complexity.
Now we're in expert territory. 5-axis machining is a different world.
By adding two rotational axes, usually A and B (or sometimes A and C), you're no longer confined to moving the part in straight lines. The tool can approach from virtually any angle. The part can tilt, swivel, rotate—even during the cut.
This matters when surfaces curve in multiple directions. Turbine blades. Orthopedic implants. Complex molds. Trying to fake these with 3-axis motion? You'll waste hours and compromise quality.
5-axis machines make it possible to hit those angles cleanly. And with fewer setups. That alone can justify the upgrade in aerospace or medical manufacturing.
Another benefit: tool orientation. When the cutter stays perpendicular to the surface, cutting loads drop. That extends tool life and improves the finish.
Of course, it's not for everyone. CAM programming for 5-axis systems is advanced. Mistakes can lead to crashes. Machines cost more. And training isn't trivial.
But for parts with deep cavities, organic shapes, or multiple tight features across different planes, 5-axis isn't just helpful—it's necessary.
Not every project calls for a high-end solution. The trick is knowing what your part really needs.
If most of your designs are prismatic—flat faces, straight holes, rectangular pockets—3-axis is fast and effective. No need to over-engineer the process.
If your parts need repeated side access or cylindrical cuts, consider 4-axis. It'll pay for itself in reduced setup time and better alignment.
Designs with curvature across multiple planes? Or parts that benefit from one-and-done machining? That's where 5-axis earns its keep. Not just for quality, but for time saved.
It also depends on your team. A small shop with limited CAM capabilities may struggle with multi-axis paths. In that case, simpler might actually be better.
Think of axis count not as a status symbol, but as a functional match to the job.
Here's what all this theory looks like in a real shop.
A 3-axis machine might crank out 50 aluminum plates a day, no problem. Tight tolerances, repeatable results. But ask it to drill angled holes or contour a mold surface, and it starts to stumble.
Bring in a 4-axis machine. Suddenly, that complex aluminum housing—holes on five sides, pockets at 45°—can be finished in two steps instead of six. Productivity spikes. Quality improves.
Now consider the shop that upgrades to 5-axis. They start taking on parts others can't touch. Lead times drop. Clients with high-tolerance needs stop going elsewhere.
Of course, the learning curve is real. 5-axis setups aren't forgiving. One missed angle in simulation can wreck a part—or a tool. But over time, the control it offers becomes a huge advantage.
Understanding CNC machine axes isn't about memorizing axis names. It's about predicting how those axes will impact your cost, speed, and ability to deliver.
Not all motion is equal. In CNC machining, the axis configuration behind your equipment defines what's possible—and what's practical. From simple brackets to sculpted aerospace forms, the right number of axes makes the difference between good parts and great ones.
