In today's fast-paced market, speed and cost-efficiency in product development are paramount. You may have heard of "soft machining," but beyond the term lies a strategic production philosophy—one centered on agility, efficiency, and significant cost savings.
This approach is particularly transformative for companies in low- to medium-volume production. It provides the flexibility to bring ideas to life without the massive upfront investment of hard tooling. This guide will explore how soft machining works, the materials it involves, and its diverse applications across key industries.

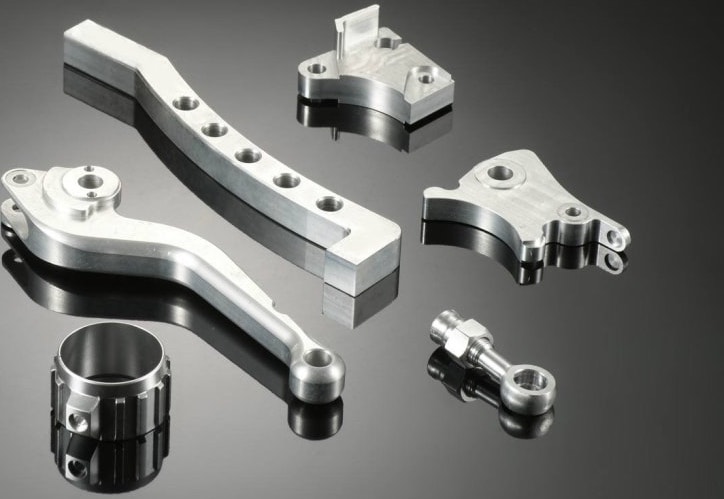

Soft machining refers to a controlled, low-force CNC machining process that utilizes soft (non-hardened) materials or temporary "soft tooling" like aluminum or silicone molds. This technique is the cornerstone of agile manufacturing, ideal for stages where design iterations are frequent and cost-control is critical, serving as a flexible and cost-efficient precursor to hard machining.
The process achieves its results by minimizing stress on the workpiece through repeated shallow passes and optimized tool paths. This approach preserves the material's integrity and achieves exceptional dimensional accuracy, which is crucial for machining complex geometries, thin walls, and delicate features that might deform under traditional machining forces.
With well-tuned CNC systems, this method can achieve tolerances as tight as ±0.005 inches for plastics and up to ±0.01 mm for non-ferrous metals. This makes soft machining ideal not just for prototypes, but also for functional testing, jigs, fixtures, and ready-to-use components. While hard machining is indispensable for mass production of hardened metals, soft machining provides the necessary agility and speed for product development and low to medium-volume production.
A range of specialized CNC methods is employed to meet the diverse requirements of soft machining projects, each selected based on the specific geometry, material, and tolerance demands.
In soft machining, milling transforms into a precision-oriented, low-stress operation. It employs calculated, shallow-depth passes to meticulously create intricate pockets, channels, and 3D contours in non-hardened materials. This low-force strategy is crucial for preserving the integrity of delicate workpieces and achieving high dimensional accuracy, effectively preventing deformation in thin-walled or complex geometries that are common in prototyping and low-volume production.
The CNC turning process is the preferred method for manufacturing cylindrical parts like shafts, pins, and connector housings. It delivers high concentricity and superior surface finishes. The use of collet chucks and vibration-damped boring bars is standard practice to maintain part stability and prevent deformation during machining.
From micro-holes as small as 0.5 mm, common in sensor applications, to larger clearance bores, CNC drilling handles a wide spectrum of hole-making tasks. Multi-axis configurations enable the creation of compound-angle holes without the need for re-fixturing. Air blasts or mist coolant systems are typically integrated to manage chip evacuation and prevent thermal distortion in heat-sensitive materials.
When a project calls for micron-level tolerances and exceptional surface quality (often achieving Ra ≤ 0.2 µm), precision grinding is the method of choice. This abrasive process is capable of producing optical-grade clarity on polymers like acrylic and a pristine, flawless finish on anodized aluminum components.

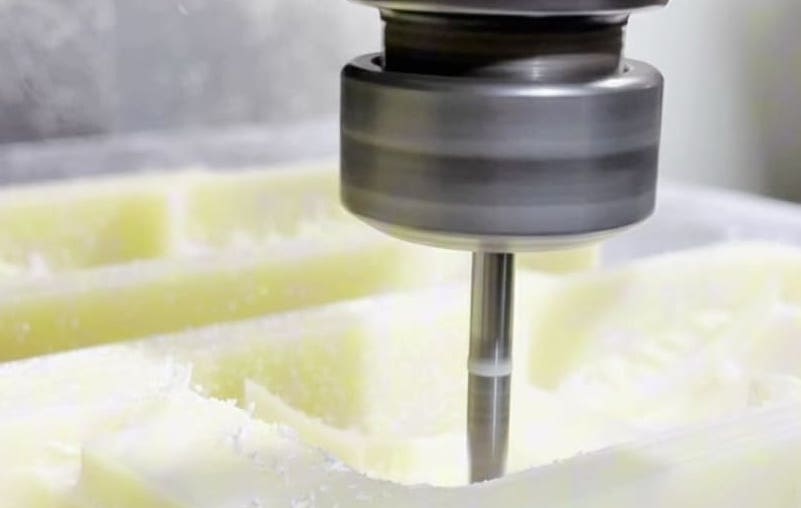

Soft machining is compatible with a wide range of non-hardened materials, each requiring specific tooling and handling strategies to achieve optimal results.
This category encompasses everything from common prototyping materials like ABS and Polycarbonate to high-performance engineering plastics such as PTFE and PEEK. Machining these materials typically requires polished carbide cutting tools to prevent material smearing and to achieve a superior surface finish, often suitable for subsequent polishing processes.
Fibre-reinforced composites like carbon fiber and glass-filled materials present unique machining challenges. To minimize fraying and layer separation (delamination), diamond-coated cutting tools are recommended. Secure fixturing, often using vacuum tables, is essential to hold these materials firmly without causing surface damage or crushing.
This group of materials is a staple in soft machining due to its excellent machinability and properties. Aluminum alloys like 6061 and 7075 are valued for their high strength-to-weight ratio; Brass 360 is often chosen for its aesthetic appeal and corrosion resistance; and Copper C101 is selected for applications demanding high thermal and electrical conductivity.
The table below outlines common materials used in this process and their key characteristics.
| Material | Primary Benefits | Key Applications |
|---|---|---|
| Aluminum | Lightweight, excellent machinability, good corrosion resistance. | Structural components, enclosures, heat sinks. |
| Brass | High machinability, good electrical & thermal conductivity, aesthetic appeal. | Electrical connectors, valves, decorative parts. |
| Copper | Superior electrical & thermal conductivity, easy to shape. | Heat exchangers, electrical components, bus bars. |
| Soft Alloys | Low cutting resistance, suitable for high-precision machining. | Intricate designs, precision parts, prototypes. |
| Plastics | Lightweight, versatile, excellent electrical insulation. | Prototypes, insulating components, consumer goods. |
| Foams | Extremely lightweight, easy to sculpt and shape. | Rapid prototyping, models, packaging inserts. |
| Wood | Easy to cut and shape, readily available. | Non-metallic models, patterns, artistic projects. |
Soft machining plays a critical role across multiple high-precision industries, enabling the production of complex and delicate components that meet stringent performance and quality requirements.
In the aerospace sector, soft machining is used to produce lightweight components such as cabin interior panels and sensor housings. The process is capable of maintaining tight tolerances across large part spans, often facilitated by specialized vacuum fixturing that secures components without inducing stress or deformation.
The medical industry relies on soft machining for applications ranging from clear polycarbonate housings for diagnostic equipment to functional prototypes of surgical instruments. The technique meets rigorous standards for dimensional accuracy and material safety, ensuring compliance with industry-specific regulations.
Soft machining supports the consumer electronics industry through the manufacture of high-quality components including heat sinks, connector housings, and device casings. The process delivers the fine surface finishes and precise dimensional tolerances required for both aesthetic and functional end-use applications.
In the automotive sector, soft machining is indispensable for rapid prototyping and the production of tooling for both interior and under-hood components. The process is used to create precise molds for plastic parts like dashboard prototypes, engine covers, and interior trim panels, as well as to directly machine lightweight aluminum brackets, sensor housings, and fluid system components. By ensuring high dimensional accuracy and superior surface finishes from the outset, soft machining accelerates development cycles and contributes to the overall efficiency and performance of vehicle systems.
Successful soft machining relies on a strategic selection of tools designed to minimize cutting forces, manage heat, and prevent material damage. The right tooling ensures high-quality surface finishes and protects the integrity of delicate workpieces.
Soft machining offers a compelling set of advantages that make it the preferred choice for prototyping, low-to-medium volume production, and complex component manufacturing. Its benefits extend beyond cost savings to encompass quality, sustainability, and flexibility.
The most significant advantage is the drastic reduction in upfront investment. By utilizing affordable materials like aluminum or engineering plastics and avoiding expensive hardened steel molds, soft machining can lower initial tooling costs by 30% to 50% compared to hard tooling.
The process operates with significantly lower noise and vibration levels compared to traditional hard machining. Furthermore, its efficient material usage and ability to work with recyclable materials like aluminum and certain plastics contribute to a more sustainable and eco-friendly manufacturing workflow.
In the early stages of product development, design changes are inevitable. Soft machining accommodates these changes with minimal cost and delay, as CAD models can be updated and new parts machined without the need to scrap expensive hard tooling.
Despite the name "soft," the process is capable of achieving high dimensional accuracy and excellent surface finishes. The low-stress, controlled cutting approach prevents part deformation and, when combined with the right tools, can achieve surface finishes that require little to no post-processing.
The process is compatible with an extensive range of non-hardened materials, from various plastics and composites to soft metals like aluminum, brass, and copper. This allows for functional prototyping in the intended end-use material and greater flexibility in material selection for production.
While soft machining is a powerful solution for many scenarios, it is not universally applicable. Understanding its limitations is crucial for selecting the right manufacturing process for your project.
The name itself implies the core constraint: soft tooling (e.g., aluminum molds, silicone molds) has a finite lifespan. These tools are designed for low to medium volumes, typically ranging from a few dozen to tens of thousands of cycles, depending on the material and part complexity. For mass production exceeding millions of units, the frequent tooling replacement becomes economically unviable, making hard tooling the necessary choice.
Components produced via soft machining inherently lack the surface hardness and wear resistance of their hardened counterparts. They are not suitable for applications involving high friction, intense abrasion, or significant mechanical stress, as they would experience rapid degradation and failure.
The process is, by definition, restricted to "soft" materials—primarily non-ferrous metals, plastics, and composites. It cannot process hardened steels or superalloys, which limits its use in applications demanding extreme strength, hardness, or high-temperature performance.
To protect the workpiece and tooling from excessive stress, soft machining often employs multiple light passes instead of aggressive, high-volume material removal. While this ensures quality, it can result in longer individual part cycle times compared to high-speed hard machining processes once the latter is set up for mass production.
| Aspect | Soft Machining | Hard Machining |
|---|---|---|
| Production Volume | Low to Medium Volumes (1 - 70,000 units) | High Volumes (100,000+ units) |
| Lead Time | Days for first articles | Weeks to Months for mold lead time |
| Cost Structure | Lower Upfront Investment & Operating Cost | High Tooling Cost, Higher Energy Consumption |
| Design Flexibility | High; easy and inexpensive design changes | Very Low; changes are costly and time-consuming |
| Material Compatibility | Plastics, Composites, Soft Metals (e.g., Aluminum) | Hardened Steels, Titanium, Hard Alloys |
| Process Capability | High Precision (±0.01 mm) | Very High Precision (±0.005 mm) |
| Cutting Forces & Stress | Low forces, minimizes workpiece stress | High forces, can induce residual stress |
| Tooling Strategy | Soft or temporary tooling (e.g., Aluminum molds) | Permanent, hardened tooling (e.g., Steel dies) |
Soft machining is more than a service; it's a strategic choice for agile and intelligent manufacturing, perfectly embodied in our comprehensive CNC machining service. It empowers you to innovate rapidly, validate designs with functional parts, and bring high-quality products to market without the financial risk of hard tooling.
Contact our engineering team today for a free project review and quotation. Let us show you how our soft machining expertise can accelerate your timeline, reduce your costs, and bring your most complex designs to life with precision.
