When it comes to surface treatments, Physical Vapor Deposition (PVD) coating is a standout performer. Its ability to combine wear resistance, aesthetic flexibility, and environmental sustainability makes it an essential technology in modern manufacturing. From aerospace components to luxury goods, PVD coating offers unmatched durability and style, making it a trusted choice across industries.

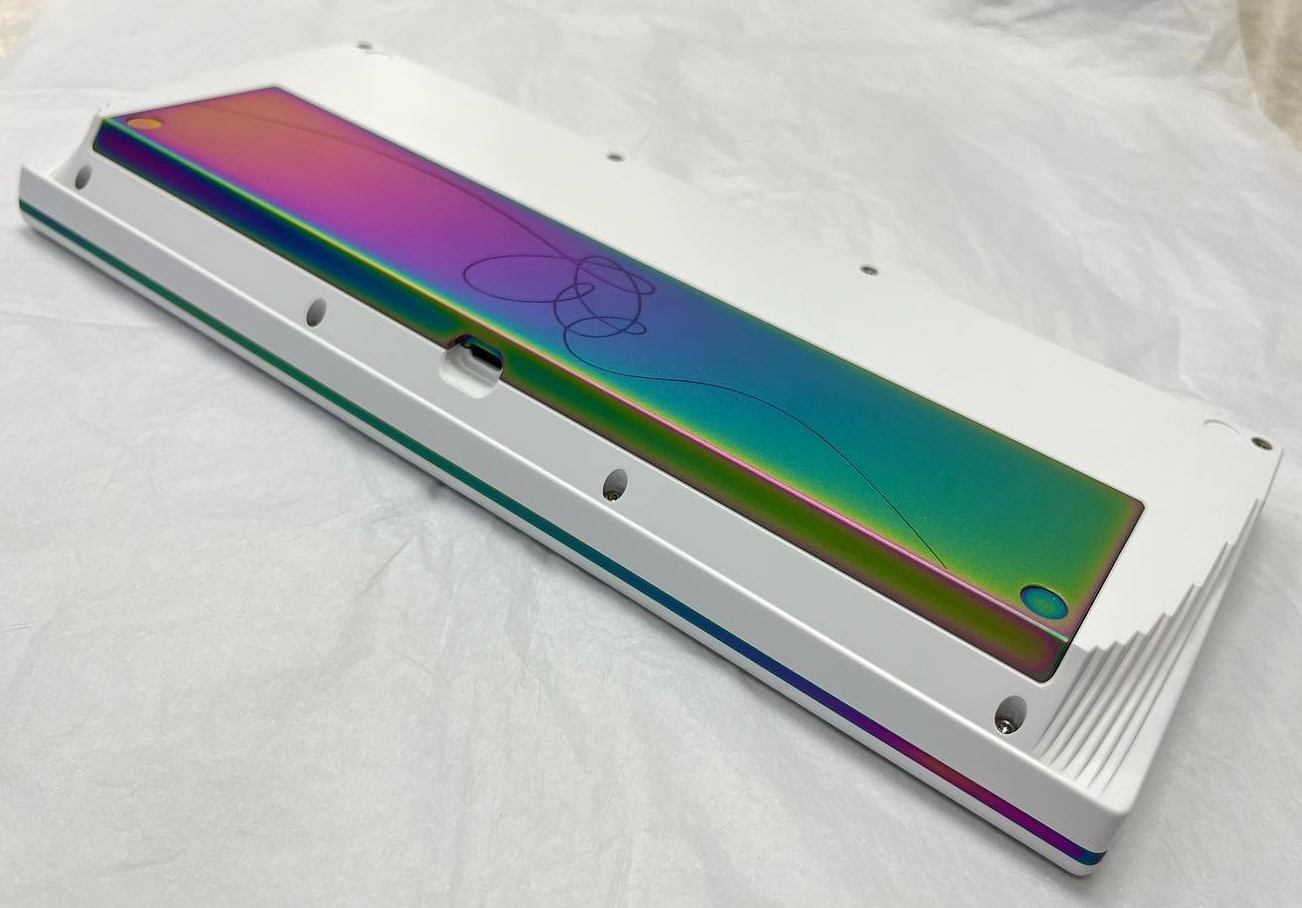

pvd coating

What Is PVD Coating?

Physical Vapor Deposition (PVD) is a vacuum-based coating process that creates thin, durable films on a substrate's surface. Unlike traditional coating methods like electroplating or painting, PVD relies on a clean, dry process that vaporizes a coating material and bonds it to the target at the atomic level.

The result? A micron-thin layer that enhances the surface's durability, functionality, and visual appeal without adding bulk.

Here’s why PVD stands out:

  • Environmentally Friendly: No harmful chemicals or byproducts.
  • Customizable: Wide range of finishes and colors.
  • Durable: Scratch-resistant and long-lasting under harsh conditions.

With its ability to enhance both functional and decorative properties, PVD coating has become indispensable for manufacturers seeking high-performance solutions.

How Does PVD Coating Work?

The PVD coating process transforms a solid material into a vapor phase and deposits it onto a substrate in a controlled vacuum environment. This sophisticated method ensures a thin, durable, and uniform coating layer with exceptional performance. Here’s a step-by-step breakdown of how the process works:

1. Cleaning the Substrate

The process begins with thoroughly cleaning the substrate (the material to be coated) to remove contaminants like oils, dirt, or oxides. Common cleaning methods include:

  • Ultrasonic Cleaning: Removes microscopic particles using high-frequency sound waves.
  • Plasma Cleaning: Uses ionized gas to eliminate impurities.
  • Chemical Cleaning: Dissolves grease and grime with solvents or etching solutions.

Proper cleaning is essential to ensure strong adhesion between the substrate and the coating.

2. Surface Pretreatment

To enhance coating adhesion, the substrate undergoes pretreatment. Techniques like:

  • Plasma Etching: Creates a microscopically rough surface for better bonding.
  • Ion Bombardment: Prepares the substrate by removing residual impurities and activating the surface.

This step ensures the coating material adheres uniformly and forms a strong bond at the atomic level.

3. Vaporization of the Coating Material

The coating material, such as titanium, zirconium, or aluminum, is heated in a high-vacuum chamber until it transitions into a vapor state. Two common methods for vaporization are:

  • Thermal Evaporation: The material is heated to its boiling point, releasing vapor.
  • Sputtering: High-energy ions bombard the material, ejecting atoms or molecules into the vacuum.

The vacuum environment ensures purity by eliminating interference from atmospheric particles.

4. Deposition onto the Substrate

The vaporized material travels through the vacuum and condenses on the substrate's surface, forming a thin, uniform layer. This deposition process occurs at the atomic level, creating a coating that is both durable and precise. Depending on the application, the substrate may be rotated or moved within the chamber to ensure complete and even coverage.

5. Cooling and Quality Control

After deposition, the coated part is cooled under controlled conditions to stabilize the coating. Quality control tests are performed to verify:

  • Coating Thickness: Measured using optical or mechanical tools to ensure precision.
  • Adhesion Strength: Tested using pull-off or scratch tests.
  • Surface Properties: Inspected for uniformity, hardness, and performance characteristics.

These tests confirm that the coating meets the required specifications for its intended application.

6. Finishing and Post-Treatment

The final step involves finishing processes such as:

  • Polishing or Buffing: Enhances the visual appearance of the coated surface.
  • Coloration: Adds aesthetic finishes like gold, black, or chrome tones.
  • Additional Treatments: Improves functionality, such as anti-fingerprint properties or enhanced corrosion resistance.

Materials Compatible with PVD Coating

The versatility of PVD coating lies in its compatibility with a wide array of materials. Both the coating and substrate can be tailored to specific needs. Common coating materials include:

  • Titanium
  • Zirconium
  • Aluminum
  • Copper

Substrates such as metals (stainless steel, aluminum), plastics, glass, and ceramics are also well-suited for PVD, enabling applications across diverse industries.

Applications of PVD Coating

PVD coating is a versatile solution applied across a wide range of industries due to its ability to enhance durability, aesthetics, and functionality. Below are some of its most impactful applications, with detailed insights into how PVD transforms products.

1. Aerospace

PVD coating enhances critical aerospace components like turbine blades, engine parts, and fasteners. These coatings provide excellent wear resistance and can withstand high temperatures, ensuring reliable performance under extreme conditions. By reducing friction and increasing lifespan, PVD contributes to the efficiency and safety of aircraft.

2. Medical Devices

In the medical field, PVD coatings are used on implants, surgical instruments, and diagnostic tools. They provide biocompatibility, preventing harmful metal ions like nickel from leaching into the body. Additionally, PVD coatings improve hardness and corrosion resistance, ensuring tools retain sharpness and precision through repeated sterilizations.

3. Automotive

PVD coatings are widely applied in automotive components, including decorative trims, gears, and bearings. They protect surfaces from corrosion and scratches while maintaining a polished, luxurious look. Functional parts benefit from reduced friction, enhancing performance and fuel efficiency while extending the lifespan of moving components.

4. Electronics

Electronics benefit from PVD coatings in both functionality and design. Device casings and connectors are coated for improved durability and conductivity. These thin, wear-resistant layers protect against scratches, enhance aesthetics with metallic finishes, and ensure reliable performance for long-lasting electronic components.

5. Industrial Tools

PVD coatings are critical for industrial tools such as drill bits, cutting tools, and molds. The coatings reduce wear and friction, extending tool life and maintaining sharpness. This is especially vital in industries like manufacturing and construction, where tools endure constant use in demanding environments.

6. Jewelry and Luxury Goods

PVD coatings provide jewelry and high-end goods with vibrant, durable finishes that resist tarnishing and scratches. Colors like gold, rose gold, and black are popular, offering a premium look with long-lasting appeal. This makes PVD a preferred choice for watches, rings, and decorative items.

7. Architecture and Interior Design

Architectural elements like door handles, light fixtures, and decorative panels gain durability and style through PVD coatings. These coatings resist wear and maintain their appearance over time, making them ideal for high-traffic environments. Their ability to mimic luxury metals enhances visual appeal while reducing costs.

8. Renewable Energy

In renewable energy applications, PVD coatings are used on solar panels, wind turbine components, and energy storage devices. They improve efficiency by reducing reflection losses and protecting surfaces from environmental damage, ensuring longevity and consistent performance in outdoor conditions.

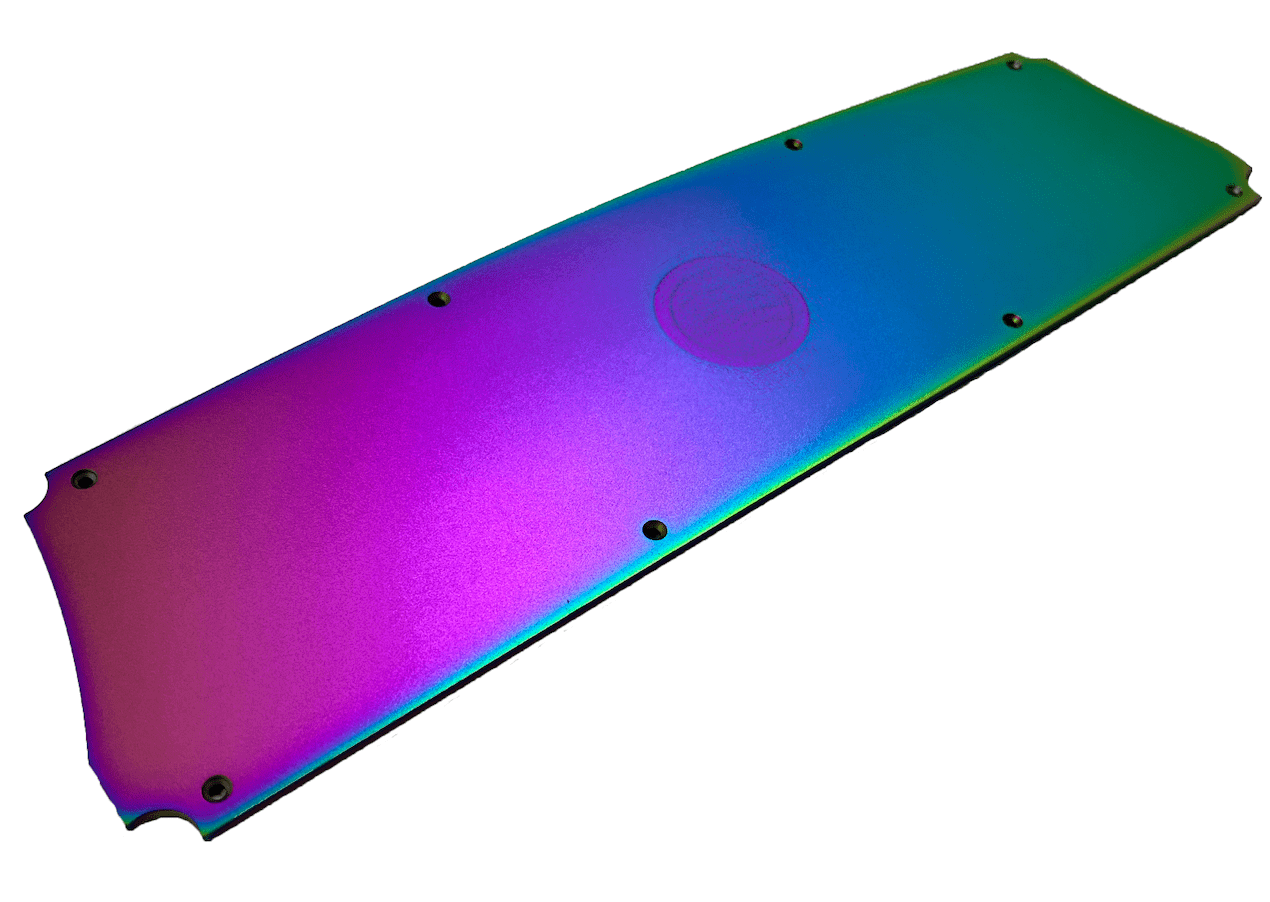

Physical Vapor Deposition

Benefits of PVD Coating

PVD coating stands out as a superior surface treatment due to its unparalleled advantages in durability, eco-friendliness, precision, customizability, and enhanced functionality. Below, each benefit is explored in greater detail.

Durability

One of the most significant advantages of PVD coating is its exceptional durability. The thin, dense layer it forms provides outstanding resistance to wear, corrosion, and scratches, even in challenging environments. Unlike traditional coatings that may peel, crack, or degrade over time, PVD coatings maintain their integrity and protect the substrate beneath. This makes them ideal for high-stress applications, such as cutting tools, automotive components, and aerospace parts, where long-lasting performance is critical.

Eco-Friendly

PVD coating is an environmentally friendly process that aligns with sustainable manufacturing practices. Unlike electroplating or chemical coatings, PVD does not involve harmful chemicals or generate hazardous waste. The process occurs in a vacuum environment, eliminating emissions and minimizing resource usage. This eco-conscious approach makes PVD an ideal choice for industries looking to reduce their environmental impact while maintaining high-quality surface treatments.

Precision

The PVD process delivers a level of precision unmatched by many traditional coating methods. Coatings are applied with micron-level control, ensuring uniformity and exact thickness. This precision is particularly valuable in industries like electronics and medical devices, where maintaining tight tolerances is crucial. Additionally, PVD coatings do not add bulk to components, preserving their original dimensions and functionality while enhancing surface performance.

Customizable

PVD coating offers remarkable versatility in terms of aesthetics. Manufacturers can achieve a variety of finishes, from polished metallic looks like gold and chrome to sleek, modern matte finishes. This customizability allows PVD-coated products to meet diverse design requirements across industries such as luxury goods, architecture, and consumer electronics. The ability to replicate high-end materials like gold or brass without the associated costs further enhances its appeal for decorative applications.

Enhanced Functionality

Beyond aesthetics and durability, PVD coatings improve the functionality of coated surfaces. For instance, anti-fingerprint properties make the coatings ideal for touchscreens, appliances, and luxury hardware, ensuring a clean, polished appearance even with frequent use. Low-friction characteristics reduce wear in moving components, improving performance and efficiency in automotive and industrial applications. These enhancements add tangible value to PVD-coated products, making them more user-friendly and efficient.

PVD Coating and CNC Machined Parts

PVD coating and CNC machining are a perfect match, combining precision with durability. CNC machining produces highly accurate components with tight tolerances, while PVD coating enhances their surfaces by adding wear resistance, corrosion protection, and aesthetic appeal, creating parts ready for demanding applications.

CNC machined parts benefit significantly from PVD coating's ability to improve both functionality and appearance. For example, cutting tools gain enhanced hardness and reduced friction, which extends their lifespan and improves efficiency. Similarly, decorative hardware receives a luxurious, scratch-resistant finish, ideal for high-end products.

This synergy makes the combination of PVD coating and CNC machining indispensable in industries like aerospace, medical, and automotive, where components must perform under high stress while maintaining a polished, professional appearance. Together, they deliver parts that meet both technical and aesthetic standards.

PVD Coating vs CVD Coating

PVD (Physical Vapor Deposition) and CVD (Chemical Vapor Deposition) are distinct coating methods with unique strengths. PVD relies on physical processes like sputtering or evaporation to deposit metals, alloys, and ceramics, while CVD uses chemical reactions to apply coatings, typically limited to ceramics and polymers.

PVD coatings are applied in a vacuum chamber at high temperatures, making the process faster and suitable for a broader range of materials. In contrast, CVD operates at relatively lower temperatures but requires longer processing times, often restricting its use to specific materials.

A key difference lies in the coating properties. PVD produces less dense, less uniform layers but excels in speed and versatility. Meanwhile, CVD coatings are denser and more uniform, offering superior surface coverage and durability for critical applications.

In summary, PVD is ideal for applications requiring speed and material variety, while CVD is chosen when denser, highly uniform coatings are essential, despite its slower process and material limitations.

Conclusion

PVD coating is more than just a surface treatment—it’s a transformative technology that enhances the durability, functionality, and aesthetics of components. Paired with high-precision CNC machining, it creates products that excel in performance and design.
