CNC (Computer Numerical Control) machining is a backbone technology in modern manufacturing, enabling high-precision, repeatable production across industries. Among the different types of CNC systems, 3-axis and 5-axis machines stand out as the most common configurations. Each has its own advantages, limitations, and ideal use cases.
If you're evaluating which machining setup best suits your production needs—whether you're producing simple parts or complex geometries—understanding the core differences between 3-axis and 5-axis CNC machining is essential. This guide explores how each system works, where they are typically used, and how to make the right choice based on your manufacturing goals.

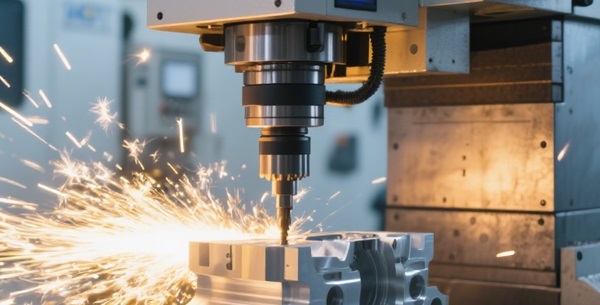

3-axis CNC machining refers to a process where the cutting tool moves in three linear directions: X (left–right), Y (front–back), and Z (up–down). The workpiece remains stationary, while the tool moves along these axes to shape the material.
This configuration is often seen in vertical machining centers (VMCs) and is considered the foundational method of CNC milling. Its straightforward setup makes it suitable for basic to moderately complex parts that require precision on a flat or slightly contoured surface.
Because the tool can only approach the part from one direction at a time, multiple setups may be needed for more complex geometries, increasing production time and potential for human error. Nonetheless, 3-axis machines remain a cost-effective and versatile solution for many machining needs.
3-axis machines are widely used in industries where parts have simpler geometry and do not require simultaneous multi-face machining.
Many automotive components, such as brackets, housings, and flanges, are efficiently produced on 3-axis machines due to their predictable shapes and tolerances.
Enclosures and fixtures used in device manufacturing are often milled using 3-axis setups, balancing speed with cost efficiency.
Shops performing low- to mid-complexity fabrication, including drilling, facing, and slotting, rely heavily on 3-axis machines for daily operations.
For materials that require fast iteration but not high precision, 3-axis routers are a practical and economical choice.
While limited in axis movement, these machines offer consistency, low maintenance, and are often easier to program—making them ideal for mass production of standardized parts.
5-axis CNC machining takes the principles of 3-axis machining and adds two rotational axes—typically referred to as the A (rotation around X) and B or C axis (rotation around Y or Z). These additional axes allow the cutting tool or the part itself to be tilted and rotated, enabling access to multiple sides of a component in a single setup.
There are two main types of 5-axis configurations:
Table/Table: The part rotates along two axes, while the tool remains stationary.
Head/Table: The tool and the table both rotate to manipulate the part and cutting angle.
5-axis machining is especially useful for parts with deep cavities, complex contours, or intricate features that would be impossible or inefficient to produce with multiple repositionings on a 3-axis machine. The result is greater precision, fewer setups, and reduced machining time.
5-axis technology is the go-to choice for industries demanding high precision and complex geometries, often in challenging materials.
Turbine blades, impellers, and structural components often require complex surfaces and tight tolerances—ideal for 5-axis machining.
Orthopedic implants, surgical tools, and prosthetics benefit from the smooth curves and intricate shapes that 5-axis machines can achieve.
For injection molding, blow molding, or die casting, 5-axis machines enable the creation of deep cavities and undercuts without sacrificing dimensional accuracy.
Any application involving critical tolerances and multi-surface geometry—such as in optics, robotics, or fluid systems—frequently turns to 5-axis systems for a production edge.
Although the learning curve and machine cost are higher, the payoff in production efficiency and surface quality is substantial, especially for small-to-medium batch runs of high-value components.
The most obvious distinction between 3-axis and 5-axis CNC machining lies in their range of motion. While 3-axis machines operate along three linear directions—X, Y, and Z—5-axis machines add two additional rotational axes. This extended flexibility allows for more complex tool orientations and enables cutting on multiple faces without needing to manually reposition the part.
Setup time is another critical factor. In 3-axis machining, components with features on multiple sides typically require several setups and repositioning steps. This can increase the risk of alignment errors and prolong lead times. In contrast, 5-axis systems often complete the same part in a single setup, maintaining accuracy and reducing overall cycle time.
From a design standpoint, 3-axis machining is better suited for flat surfaces and simple geometries. It struggles with features like undercuts or deep cavities, which may be inaccessible without creative fixture solutions. 5-axis machining overcomes these challenges with its ability to tilt and rotate the cutting tool or part, making it ideal for intricate contours and complex shapes.
Programming and operation also differ significantly. 3-axis machines are generally easier to program and simulate, making them a good starting point for many manufacturers. On the other hand, 5-axis systems require advanced CAM software and skilled operators to fully leverage their capabilities. The steeper learning curve is offset by the potential for higher-quality results and reduced manual intervention.
Finally, cost considerations play a major role. 3-axis machines tend to have a lower upfront investment and simpler maintenance requirements. However, the higher initial cost of a 5-axis machine may be justified by its increased efficiency, reduced labor hours, and expanded machining potential—especially for businesses producing high-value, precision parts.
To help you better compare the two approaches, here's a side-by-side breakdown of their key characteristics:
| Aspect | 3-Axis CNC | 5-Axis CNC |
|---|---|---|
| Axis Movement | Linear X, Y, Z | Linear + 2 Rotational (A/B or A/C) |
| Part Complexity | Suitable for simple geometries | Ideal for complex and contoured shapes |
| Setup Requirements | Multiple setups may be needed | Single setup for most parts |
| Programming Complexity | Relatively simple | Requires advanced CAM and skill |
| Typical Industries | Automotive, general metalworking | Aerospace, medical, high-end mold |
| Cost | Lower initial investment | Higher machine and maintenance cost |
The decision between 3-axis and 5-axis CNC machining depends on your manufacturing priorities:
If you're scaling up or seeking flexibility for a wider range of parts, investing in 5-axis technology can future-proof your production line. However, for many applications, a well-operated 3-axis setup is more than sufficient.
Both 3-axis and 5-axis CNC machining offer distinct advantages, depending on the complexity of the parts you're producing and your overall production goals. While 3-axis machines are ideal for straightforward tasks and lower budgets, 5-axis systems unlock new levels of precision and efficiency for high-value, intricate components. Understanding their differences is the first step toward making the right investment for your manufacturing workflow.
